The Parts Store
Here's a selection of some of the more necessary replacement parts by model, complete with the original factory number, along with dials, parts movements and project watches. Assume that all movements are non-running, unless stated otherwise.
Contact us if you need more photos or information. Additional parts may be available.
Model 1
Winding Pinion
Winding Pinion
Winding Pinion
1-005
Winding pinion with 14 slanted teeth.
Factory part #34.
Model 2
Balance Staff
Barrel and Arbor
Barrel and Arbor
2-001
Single-roller balance staff for hunting.
Factory part #103.
Barrel and Arbor
Barrel and Arbor
Barrel and Arbor
2-002
Mainspring barrel with cover and arbor.
Factory parts #105 and #106.
Pallet Fork
Barrel and Arbor
Setting Lever
2-003
Pallet fork with arbor and stones.
Factory part #146.
Lever Spring
Setting Lever
Lever Spring
2-005

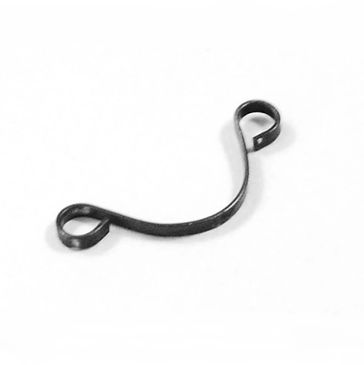

Setting lever spring for all higher grades.
Factory part #189.
Plate Screw
Setting Lever
Lever Spring
2-006
Plate screw for hunting, blued or plain. Factory part #177.
Regulator
Regulator Spring
Regulator Spring
2-007
Regulator for flat hairspring, hunting.
Factory part #162.
Regulator Spring
Regulator Spring
Regulator Spring
2-008
Regulator spring with adjustment screw.
Factory part #164.
Winding Pinion
Regulator Spring
Winding Pinion
2-009
Winding pinion for hunting, 15 teeth.
Factory part #160.
Yoke Boss
Yoke Spring
Yoke Spring
2-011

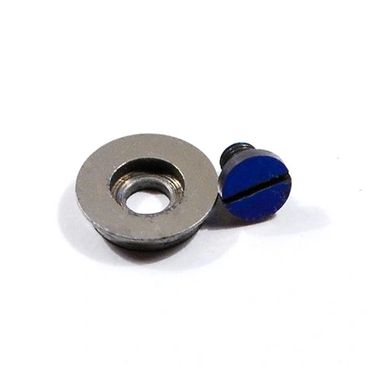

Boss and screw for hunting yoke.
Factory parts #211 and #185.
Model 3
Balance Staff
Balance Staff
Balance Staff
3-001
Single-roller balance staff for open-face. Factory part #103.
Case Screws
Balance Staff
Balance Staff
3-002
Case screw, half-headed, quantity of 2.
Factory part #170.
Lever Spring
Regulator Spring
Escape Wheel
3-004
Setting lever spring for all higher grades. Factory part #189.
Regulator
Regulator Spring
Regulator Spring
3-005
Regulator for flat hairspring, open-face.
Factory part #161.
Regulator Spring
Regulator Spring
Regulator Spring
3-006
Regulator spring with adjustment screw.
Factory part #163.
Model 4
Balance Staff
Balance Staff
Balance Staff
4-001
Single-roller balance staff for key-wind. Factory part #103.
Ratchet Bridge
Ratchet Bridge
Ratchet Bridge
4-004
Ratchet bridge for key-wind.
Factory part #110.
Model 5
Balance staff
Balance staff
Balance staff
5-001
SR balance staff for 11-jewel and higher. Factory part #305.
Lever Spring
Balance staff
Lever Spring
5-003
Setting lever spring for all higher grades. Factory part #389.

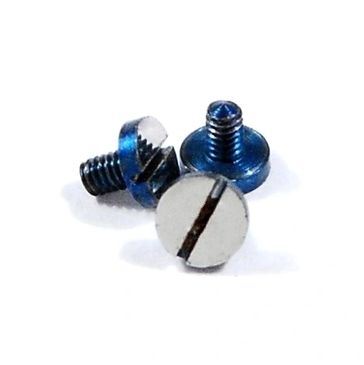

Plate Screws
Plate Screws
Plate Screws
5-005
Flat polished plate screws, set of three. Factory part #375.
Regulator Index
Regulator Spring
Regulator Spring
5-007
Regulator index in gilt. Nickel available. Factory part #355.
Regulator Spring
Regulator Spring
Regulator Spring
5-008
Regulator spring with adjustment screw. Factory parts #357 and #380.
Setting Lever
Regulator Spring
Setting Lever
5-009
Polished steel setting lever with stud.
Factory part #388.
Yoke Boss
Yoke Spring
Yoke Spring
5-011
Polished yoke boss with screw.
Factory parts #386 and #408.
Model 8
Balance Staff
Balance Bridge Screw
Barrel and Arbor
8-001
New Eagle single-roller balance staff. Factory part #603.
Barrel and Arbor
Balance Bridge Screw
Barrel and Arbor
8-002
New Eagle mainspring barrel w/ arbor.
Factory parts #605 and #606.
Balance Bridge Screw
Balance Bridge Screw
Balance Bridge Screw
8-003
New Eagle balance bridge screw.
Factory part #652.
Fourth Wheel
Ratchet Wheel
Balance Bridge Screw
8-004
New Eagle fourth wheel with pinion. Factory part #677.
Center Wheel
Ratchet Wheel
Ratchet Wheel
8-005

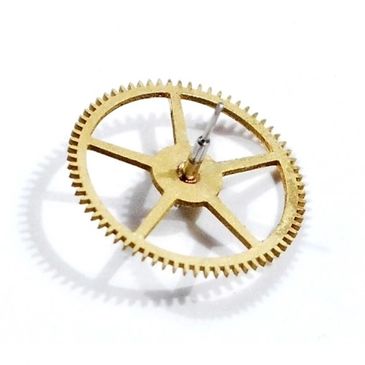

New Eagle center wheel with pinion. Factory part #672.
Ratchet Wheel
Ratchet Wheel
Ratchet Wheel
8-006
New Eagle 42-tooth ratchet wheel.
Factory part #684.
Ratchet Bridge
Ratchet Bridge
Ratchet Bridge
8-007
New Eagle open-face ratchet wheel bridge. Factory part #607.
Setting Lever
Ratchet Bridge
Winding Wheels
8-009

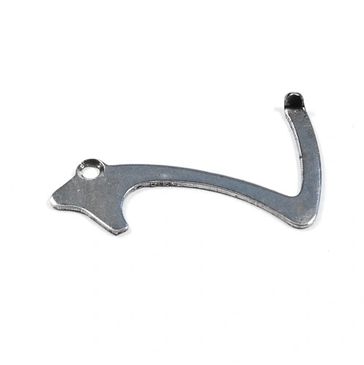

NE open-face setting lever w/out stud. Factory part #668.
Winding Wheels
Winding Wheels
Winding Wheels
8-010
New Eagle winding and idler wheels.
Factory parts #681 and #682.
Model 9
Balance Staff
Balance Bridge Screw
Barrel and Arbor
9-001
New Eagle single-roller balance staff.
Factory part #603.
Barrel and Arbor
Balance Bridge Screw
Barrel and Arbor
9-002
New Eagle mainspring barrel w/ arbor.
Factory parts #605 and #606.
Balance Bridge Screw
Balance Bridge Screw
Balance Bridge Screw
9-003
New Eagle balance bridge screw.
Factory part #652.
Fourth Wheel
Ratchet Wheel
Balance Bridge Screw
9-004
New Eagle fourth wheel with pinion. Factory part #677.
Center Wheel
Ratchet Wheel
Ratchet Wheel
9-005
New Eagle center wheel with pinion. Factory part #672.
Ratchet Wheel
Ratchet Wheel
Ratchet Wheel
9-006
New Eagle 42-tooth ratchet wheel.
Factory part #684.
Ratchet Bridge
Ratchet Bridge
Ratchet Bridge
9-007
New Eagle hunting ratchet wheel bridge. Factory part #608.
Setting Lever
Ratchet Bridge
Winding Wheels
9-009
NE hunting setting lever w/out stud. Factory part #669.
Winding Wheels
Winding Wheels
Winding Wheels
9-010
New Eagle winding and idler wheels.
Factory parts #681 and #682.
Models 10 - 13
Barrel and Arbor
Barrel and Arbor
Barrel and Arbor
C-001
Century Series mainspring barrel w/ arbor. Factory parts #805 and #806.
Dials
Models 1 - 4

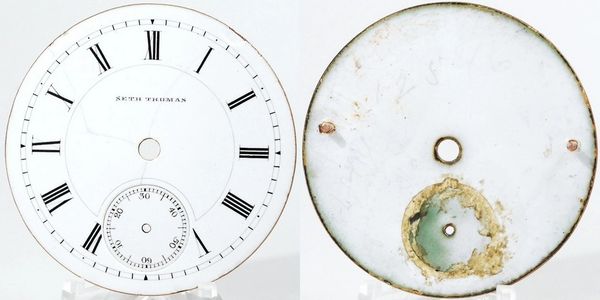

D-101
18-size Roman-numeral single-sunk dial with cut seconds and hand-lettered signature for all Models 1 and 4, and early Models 2 and 3. There is a single light vertical hairline through the middle and both feet are intact.

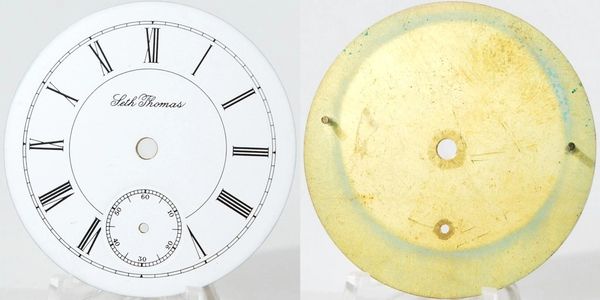

D-202
18-size Roman-numeral single-pressed metal replacement dial for later Model 2. Flawless condition with both feet intact.
Model 5

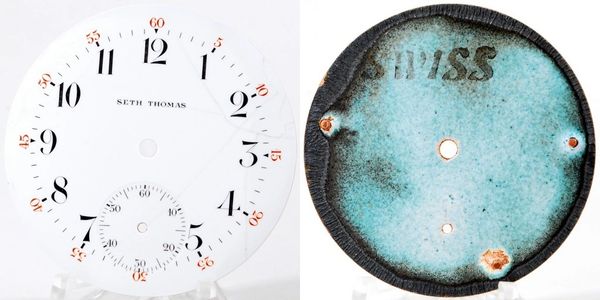

D-501
18-size Arabic red/black single-pressed #1225 dial for all later Model 5s. Some light hairlines and an edge chip at the 30- and 49-minute-marks. All three feet are intact.
Models 6 and 7
D-601
18-size Arabic single-sunk for all Old Eagle Models 6 and 7, though usually used on the open-face Model 6. There are some light hairlines and edge chips.
Models 8 and 9
D-801
18-size Arabic-numeral pressed dial for any open-face Model 8. There are no hairlines, but there is a small edge chip at the 15-minute-mark and one dial foot is missing.
D-901

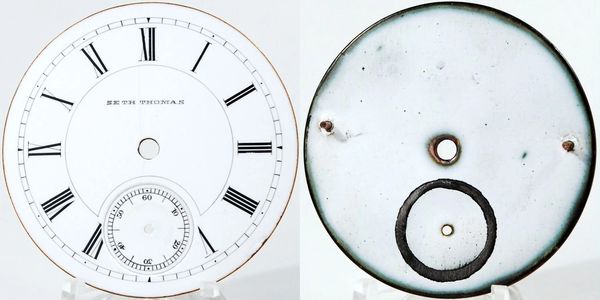

18-size Roman-numeral pressed dial for hunting Model 9. There are some light hairlines at the right foot location, and the third foot at the 35-minute-mark has been cut off.
Models 10 - 13
D-121

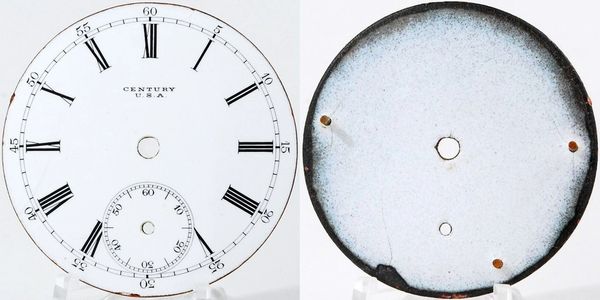

18-size Roman-numeral single-pressed Century dial with all three dial feet intact. There are a couple of minor edge chips.
Model 21
D-221
16-size pressed Arabic dial with all three dial feet intact at 13, 34, and 46 minutes. There are a few light hairlines at the right dial foot location.
Model 22
D-221
Flawless Arabic 12-size dial for Model 22 or 6-size stretched Grades 12 to 19. All three dial feet are intact at 2, 22, and 41 minutes.
18-Size Parts Movements
PM-202

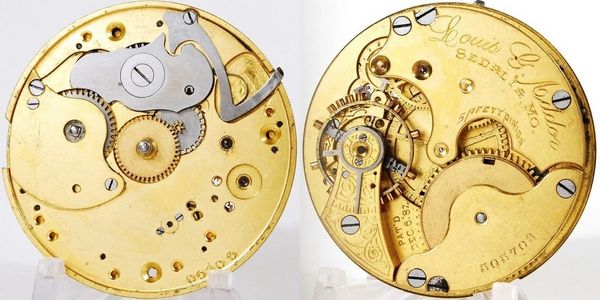

18-size 11-jewel hunting lever-set gilt Grade 56 private label Model 2 for a Louis Addor of Sedalia, MO, SN 505703. Balance staff is good but the roller jewel is either missing or broken. The center and 4th pinions are both intact.
PM-203

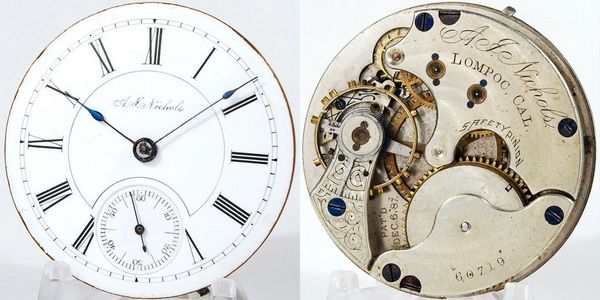

18-size 15-jewel hunting lever-set nickel Grade 152 private label Model 2 for an A J Nichols from Lompoc, CA, SN 60719. The balance staff is broken, as is the mainspring. The matching dial is intact with no hairlines, and there is a full set of hands.
Model 3

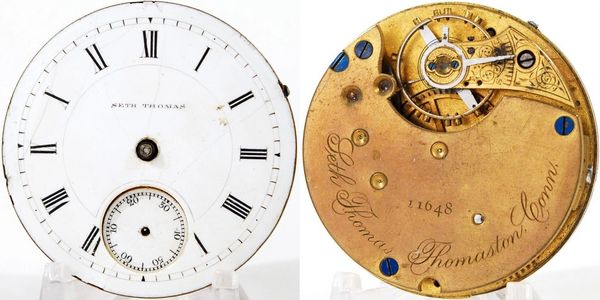

PM-301
Very early 18-size 11-jewel open-face lever-set gilt Grade 55 Model 3, SN 11648, with a good balance staff and good mainspring but is too gummy to run. Correct Roman-numeral dial has a loose seconds sub, and the center and 4th pinions are both intact.
Model 5
PM-501
18-size 15-jewel open-face pendant-set gilt Grade 149 Model 5, SN 292824, with a good balance staff but the mainspring is either broken or missing. The Arabic dial is usable with an edge chip, and the center and 4th pinions are both intact.
PM-502

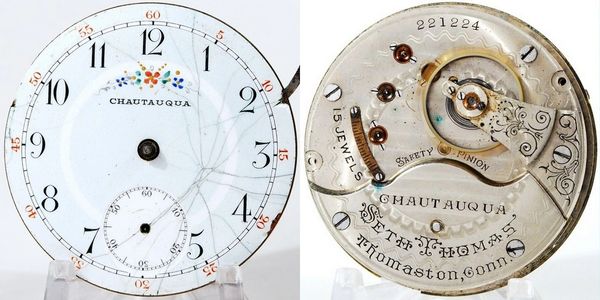

Scarce to rare 15-jewel G173 Model 5 in the Chautauqua grade with a matching fancy dial, presumably named for the Chautauqua Institute in New York, SN 221224. Only seven examples have been reported out of a total production of around one hundred. The balance staff is good and the movement is running weakly. The center and 4th pinions are both intact, but the hands and regulator assembly are missing.
Model 6 Old Eagle
PM-601
18-size 7-jewel open-face lever-set nickel Grade 36. Running weakly with a good staff, but the winding pinion is backwards, so it can't be wound. The hour and minute wheels are missing but the center and 4th pinions are both intact.
Model 7 Old Eagle
PM-701
18-size 7-jewel hunting lever-set nickel Grade 37. The balance staff and the mainspring are both good, but is too gummed up to run. Usable Roman-numeral dial with some minor flaws, and the center and 4th pinions are both intact.
Model 8 New Eagle
PM-801
18-size 7-jewel open-face pendant-set nickel Grade 36. The balance staff is good but it's too gummy to run. The dial is in good shape and the seconds hands is correct for this model.
PM-803
18-size 7-jewel open-face pendant-set nickel Grade 36. The balance staff is broken but the center and 4th pinions are intact. The dial is better than nothing at all and there plenty of usable parts.
Model 9 New Eagle
PM-901
18-size 7-jewel hunting lever-set nickel Grade 37. The balance staff is good but the roller jewel is missing. The dial is flawless and all three hands are correct.
Model 12 Century
PM-121

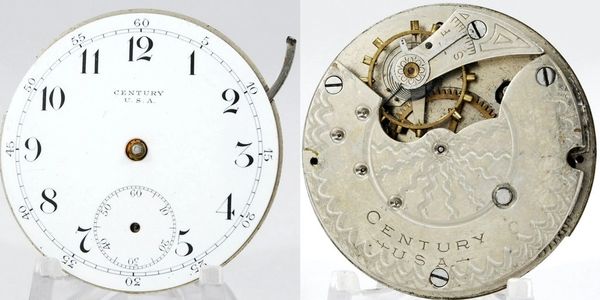

18-size 7-jewel open-face lever-set nickel Model 12 Century with a bad balance staff. The dial is flawless and both the center and 4th pinions are intact.
Model 13 Republic

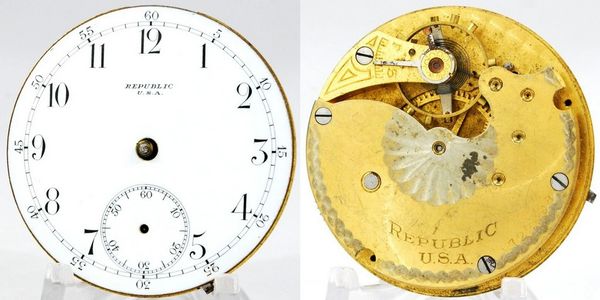

PM-131
18-size 7-jewel hunting lever-set two-tone Model 13 Republic with a bad balance staff. The dial is flawless and both the center and 4th pinions are intact.
0 to 16-Size Parts Movements
Model 14
PM-141
6-size 7-jewel gilt Grade 46 Model 14 with a good balance staff. The dial is shot, but both the center and 4th pinions are intact, as is the male winding stem.
PM-142
* Complete watch *
6-size 7-jewel gilt lever-set Grade 46 Model 14, SN 123745, running well with a correct dial that has a few hairlines. Matching fleur-de-lis hands. The 20-year gold-filled case has healthy lid and latch springs, a blank dust cover, and a glass crystal.
Model 15
PM-151
6-size 7-jewel lever-set two-tone hunting Grade 35 Model 15. Running weakly but no doubt needs a servicing. Usable Roman-numeral dial with an edge chip, and both the center and 4th pinions are intact.
Model 22
PM-221
12-size 7-jewel Grade 326 Model 22 with a bad balance staff. The dial is shot, but both the center and 4th pinions are intact.
PM-222
12-size 7-jewel Grade 326 Model 22 with a missing balance assembly, but the dial and hands are intact and correct.
Model 23
PM-231
12-size 15-jewel Grade 26 bridge Model 23 with a bad balance staff. The dial has some damage at the top left, but both the center and 4th pinions are intact.
Model 24
PM-241
6-size 7-jewel pendant-set Model 24. The balance staff is blown but the dial is excellent, the mainspring is good, and it has a full set of hands. The clamshell case has a glass crystal but needs a bow.
