The Model 21*

1912 to 1915

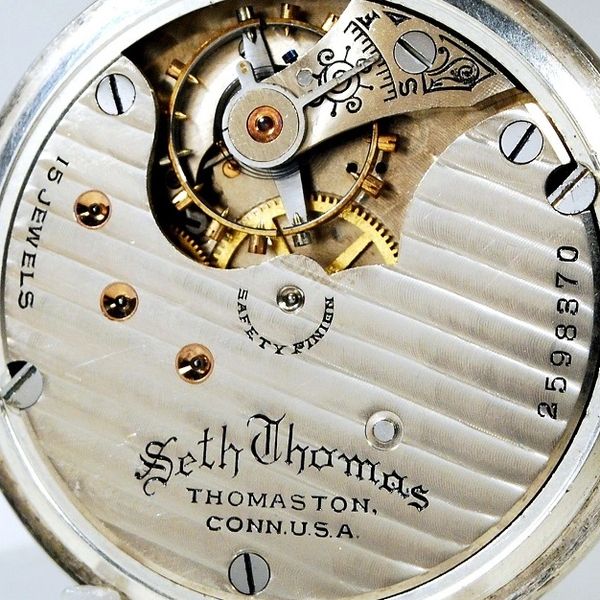

The Model 21 was the company's only known 16-size movement, and it came well after most of the other American firms had launched their own 16-size designs. ​​It was part of the Centennial Series, introduced around 1913 to mark their 100-year anniversary, and offered in three jewel counts on a single nickel pinstripe pattern. All three of the Centennial sizes within the grade were retailed in either nickel or 10/20-year gold-filled factory cases.


*  This is an assigned model number

Grade Lookup

Click on the charts below for more information.

The watches logged in the Serial Number Table are all verified examples.

These charts are for public use and for personal research, not for the Pocket Watch Database to plagiarize.

Model 21 SN Table (pdf)

Download

Model 21 Run Chart (pdf)

Download

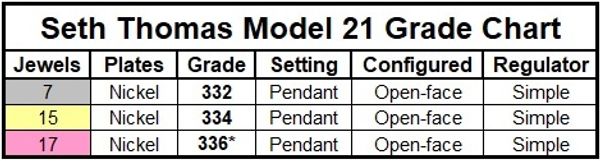

Grade Assignment

There are three known Model 21 pendant-set grades. All of them are open-face with a simple pinstripe pattern on nickel plates only. No private labels have been reported in either serial number block.



​* The 17-jewel Grade 336 is assigned.

The Centennial Grade

The Centennial Series was a named grade produced in three models, including the 16-size Model 21 family. While the standard Seth Thomas movements have three different jewel counts with the higher counts found only in the second smaller run, the Centennial grade had 7 jewels and have been reported only in the first serial number block.

Master Grade Chart

Grade Totals

62,000

Roughly 62,000 of the Model 21 were produced in two widely separated blocks, with the first larger run starting at SN 1304501 up to 1360000, and a second smaller run beginning at SN 2593001 and ending at 2600000.


Type in your grade designation from the Grade Lookup above for the number of runs and the approximate total produced. There is a fine distinction between the 7-jewel Grade 322s that are Centennials and those that are factory-marked, so for a breakdown of the two totals scroll back up and click on the Run Chart.

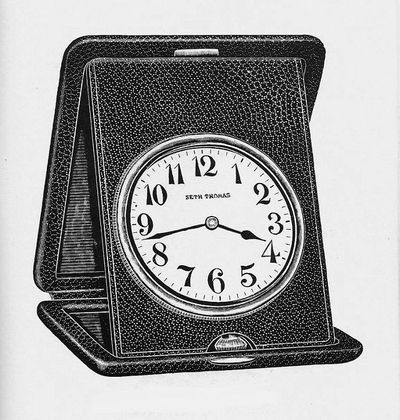

The Tourist

Travel Watch

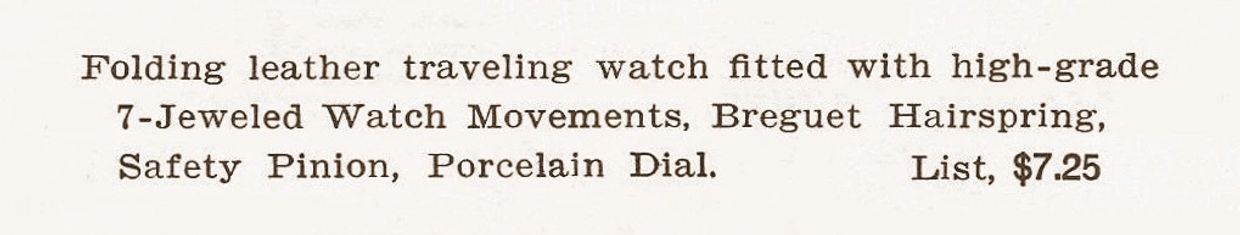

The Tourist was a newer, smaller version of the 18-size travel Companion in a folding design, containing a 7-jewel Model 21 with all of the standard features like a safety pinion and a Breguet (overcoil) hairspring on the balance wheel. It was offered in several different leather color choices, selling for $7.25 in the 1914 catalog. Note that the movement was upside-down, winding at the 6:00 position with no seconds bit on the porcelain dial.

Manufacture Dates

1913 to 1915

The first known appearance of the Centennial Series was in the 1913 Trade Price List, which would make sense given the company's established founding date of 1813. Since two distinct serial number blocks were in use it's likely that the actual debut was a little earlier, though a design date or granted patent number is not known. The three models of the Centennial Series were the only pocket watches to be listed in both the 1914 Catalog supplement and the addendum in the 1915 Catalog. The reasons behind the existence of a second block are unclear, since the first one could have continued all the way to SN 1700000. One explanation is that the M21 was made at different times and therefore blocked separately, but the only catalog known to advertise the Centennial Series was the 1913 edition, with no mention of any 16-size models in the 1909 volume.

Master Block Chart

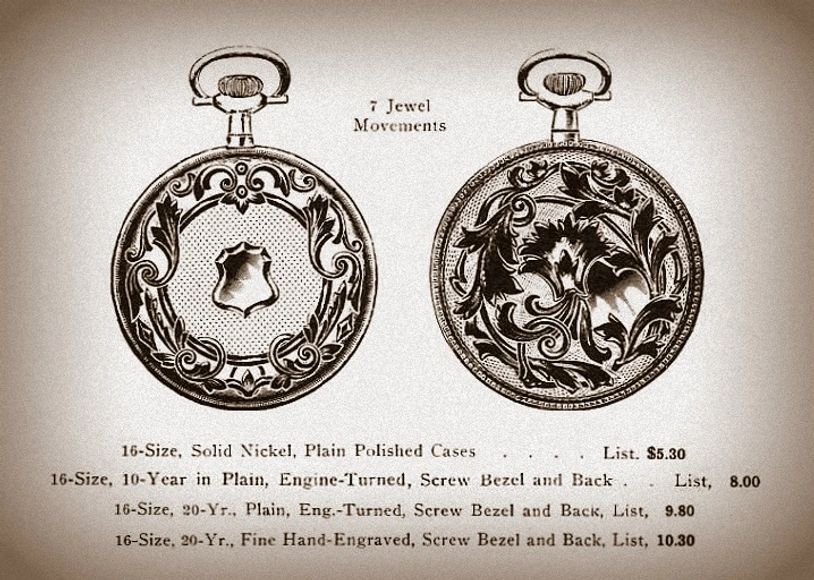

Period Ad Cuts

1913

The Centennial catalog.
