The Model 2

1888 to 1900

The Model 2 was the company's first hunting watch, conceived in 1886 and produced the following year. It was a skeletonized 3/4-plate design with a graceful cantilever over the center wheel pivot that continued the use of the long pallet escapement, and were available in either gilt or nickel, or the rare flashed-gilt and two-tone plates. ​With the exception of a few key-wind examples, all the rest were lever-set and were available in jewel counts of 7 in gilt all the way up to 20 for the rarest Model 2 of all - the Henry Molineux.


Grade Lookup*

Click on the charts below for more information.

The watches logged in the Serial Number Table are all verified examples.

These charts are for public use and for personal research, not for the Pocket Watch Database to plagiarize.

Model 2 Grade Totals (pdf)

Download

Model 2 SN Table (pdf)

Download

Model 2 Run Chart (pdf)

Download

Model 2 Private Labels (pdf)

Download

* Search returns are based on similar verified examples within a few serial numbers using the smallest accepted block of ten watches, which is how many ebauches (unfinished movements) a wooden factory tray could hold. Movements were occasionally pulled from the run for private labels and upgrades, so search returns are sometimes incorrect.

Grade Assignment

All known Model 2 grades have been determined from existing catalogs and period ads. Several grades may appear redundant, since four of the lower ones could be changed to four higher grades by simply swapping the basic single-sunk dial for a double-sunk. Since it's impossible to know if a dial is original to a given movement, the lower grades have been used in all of the search returns and in the SN Table. The catalogs show a clear distinction between gilt and nickel plate finishes, with two-tone and flashed-gilt categorized as nickel.


 * The 11-jewel nickel Grade 156 has been assigned.

Identify Yours

The Jeweling

The factory seldom jeweled the center wheel on the pillar plate, resulting in a 16-jewel watch that appears to be fully jeweled. The company also produced 17-jewel variants, but without pulling the dial there is no way to visually tell the difference. None of the known advertisements list a 16-jewel Model 2, so it's not clear if there are any grades yet to be found or if it was intentionally misleading advertising. For ease of research the 16- and 17-jewel grades have been combined.

The Confusion

The Grade 152 was defined in every publication as a 15-jewel lever-set nickel Model 2, but if the word 'Adjusted'  is milled onto its plates that very same watch becomes a Grade 197. Add a center jewel and those become Grades 191 and 180, making a total of four grade possibilities.


Adding to the confusion, the four standard 15-jewel grades - the gilt 52 and 97 and the nickel 152 and 197 - all had "upgraded" grades, which simply swapped the basic single-sunk dial for a double-sunk, creating the higher grades of 71, 102, 171 or 202.

The Word 'Adjusted'

Runs didn't always conveniently end on a number ending in zero and start with a one on the next watch, making it difficult to determine exact totals. The factory often added (or subtracted) the word Adjusted seemingly at random in the middle of a run, as shown in this photo of SN 65933 and 65934. One is marked Adjusted near the balance wheel and the other is not, making them a Grade 152 and 197, respectively. Other than that one engraved word they are the same watch.

The Grade 508

The 16 and 17-jewel nickel Grade 508 was Adjusted to Temperature and Position, according to both the plate engravings and the period ads, while the Henry Molineux is simply Adjusted, technically making the 508 a higher grade at the same jewel count.

The Grade 408

The Grade 408 is the gilt version of the 508 and was listed in the 1893 and 1895 trade catalogs for $13.00 in both. A shipping tin showing this grade, jewel count, plate finish and the abbreviation for Adjusted was recently reported, but so far a single example has yet to be logged.

Master Grade Chart

The Dials

Dials sometimes determined the grade in the Model 2, and a single-sunk dial versus a double-sunk meant the difference in several grades.

The Dials Page

Grade Totals

57,500

Roughly 57,500 of the Model 2 in all grades and jewel counts were produced in forty-six runs between SN 25101 and 100000, and fourteen more starting at SN 500001 and ending at 559000. Many private labels have been logged, at least one contract grade has been discovered, and several two-tone variants have been reported.


Type in your grade designation from the Grade Lookup above for the number of runs and the approximate total produced. There are several variants having to do with plate finishes, so for a breakdown of those scroll back up and click on the Grade Totals chart.


 If your watch is a Molineux then visit the Molineux page.

The Henry Molineux

Telling Them Apart

7-jewel

11-jewel
11-jewel

Gilt Variant - Grade 34

Nickel Variant - Grade 134

None of the gear train pivots are jeweled, the regulator is a simple one, and the movement is not marked Adjusted.

11-jewel

11-jewel
11-jewel

Gilt Grade 56

The fourth and escape wheels have press-fit jewels in pairs (red arrows), the regulator has a gooseneck adjustment spring, and the movement is not marked Adjusted.

11-jewel

11-jewel
11-jewel

Nickel Grade 156*

The pallet, escape, and third and fourth wheels have a single press-fit jewel in the top plate only, the regulator has a gooseneck, and the movement is not marked Adjusted.

15-jewel

15-jewel Adjusted
11-jewel

Gilt Variants - Grades 52 and 71

Nickel Variants - Grades 152 and 171

The third and fourth wheels have screw-set jewels in pairs, the regulator has a gooseneck, and the movement is not marked Adjusted. Dial determines grade.

15-jewel Adjusted

15-jewel Adjusted
15-jewel Adjusted

Gilt Variants - Grades 97 and 102

Nickel Variants - Grades 197 and 202

The same jeweling as the Grades 52 and 152, but the movement is marked Adjusted on the lower plate near the balance wheel. Again, the dial determines the grade.

16/17-jewel

15-jewel Adjusted
15-jewel Adjusted

Gilt Variant - Grade 91

Nickel Variant - Grade 191

The entire gear train is jeweled in pairs including the center wheel (red arrow), the regulator has a gooseneck, and the movement is not marked Adjusted.

16/17-jewel Adjusted

17-jewel Temp & Position
17-jewel Temp & Position

Gilt Variant - Grade 80

Nickel Variant - Grade 180

The same jeweling as the Grades 91 and 191, but the movement is marked Adjusted on the lower plate near the balance wheel. The dial should be double-sunk.

17-jewel Temp & Position

17-jewel Temp & Position
17-jewel Temp & Position

Gilt Variant - Grade 408

Nickel Variant - Grade 508

The same as the Grades 80 and 180, but marked Adjusted to Temperature and Positions. Not a single Grade 408 has been reported; scroll up to see the explanation.

Henry Molineux

17-jewel Temp & Position
Henry Molineux

Nickel and Two-tone

The Henry Molineux came in multiple jewel counts. To see them visit the Molineux page.

Henry Molineux

Manufacture Dates and Lookup

1888 to 1900

The Model 2 began production in 1888 when the Model 1 was discontinued, appearing in several ads that year. The last known advert for the Model 2 is dated 1896, though there are several runs scattered well into the Old Eagle Series, which began at SN 508001. It's not clear why production was re-started again a decade later, with the Old Eagle Series already offering an 18-size hunting watch, unless it was to maintain a higher-grade hunting movement presence for the competition. There is no reported advertisement of the Model 2 past 1900.


Type in the serial number to see when yours was made. All date returns are based on catalogs and period advertising.

The Contract Grades

Bismark

Henry Molineux
Henry Molineux

The rarest Model 2 named grade was the Bismark, an 11-jewel Grade 156* with only a hundred made between SN 86401 and 86500. It is not known for whom it was made, and all reported examples have the same pattern.

Henry Molineux

Henry Molineux
Henry Molineux

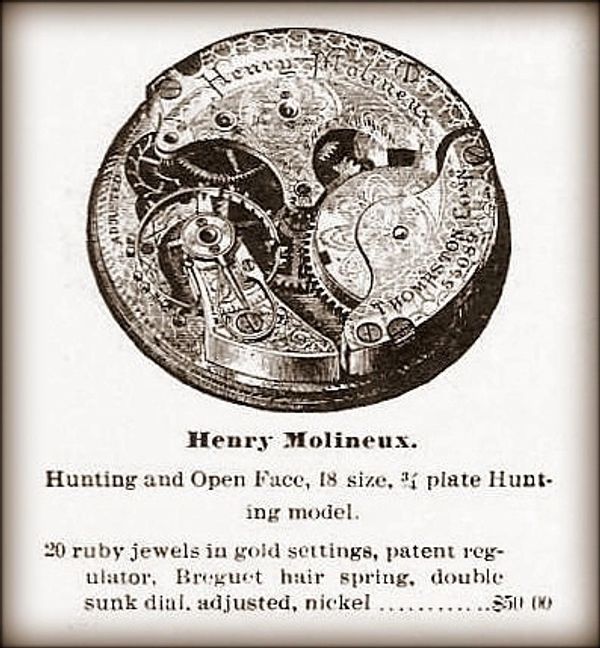

The Henry Molineux was the firm’s second-highest grade, named for a man born in New Hampshire in 1832 who was a friend of then- president Aaron Thomas, the founder’s son.

Learn more

Private Labels

Henry Molineux
Private Labels

Private labels were quite popular, accounting for nearly a fifth of overall production of the Model 2, though a quarter of them went to soap giant Lever Brothers of Philadelphia.

See the chart

The Damask Patterns

15-jewel gilt Grade 52

15-jewel nickel Grade 152

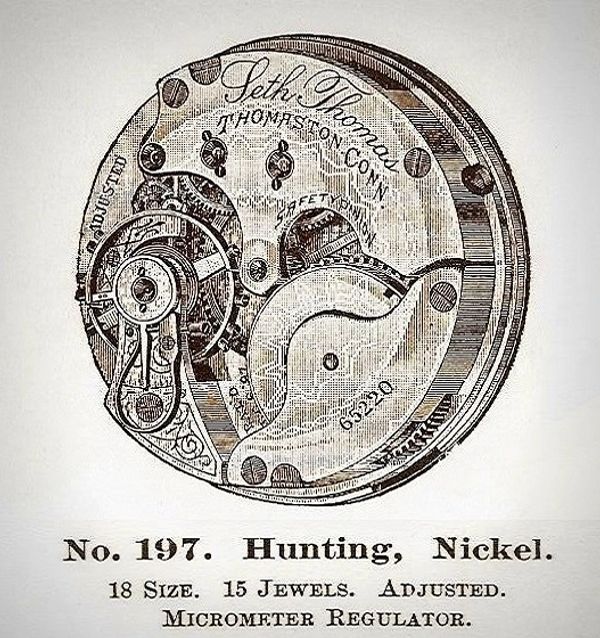

15-jewel nickel adjusted Grade 197

15-jewel nickel adjusted Grade 197

17-jewel flashed-gilt adjusted Grade 180

Courtesy of the AC&WM

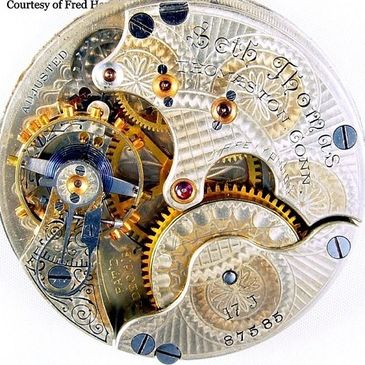

17-jewel two-tone adjusted Grade 180

Courtesy of Fred Hansen

17-jewel nickel adjusted temperature and position Grade 508

17-jewel nickel adjusted temperature and position Grade 508

17-jewel nickel adjusted temperature and position Grade 508

The Lever Brothers Watches

The British manufacturing firm of Lever Brothers ordered hundreds of private-label Model 2s from Seth Thomas. They were all 7-jewel gilt Grade 34s with matching dials in demi-hunter cases, which have a small crystal in the front cover to tell the time without having to open it.


A huge company like Lever Brothers had no reason to retail low-grade watches, and since their pride in their employees was well known it's likely these were presentation pieces.

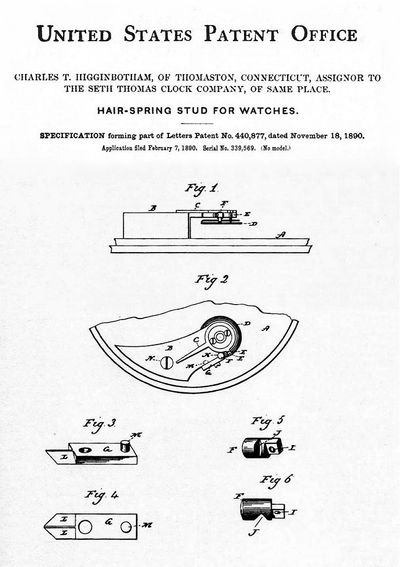

Higginbotham's Patent

Charles Higginbotham, Seth Thomas's master watchmaker, invented a unique hairspring stud for the Henry Molineux grade, found on both Models 2 and 3.


​Every other 18-size Seth Thomas model utilized a cylindrical hairspring stud, seated in a round hole and held in place by a set screw. This means the stud can be raised or lowered slightly, altering both the beat rate and the beat error.


​Higginbotham's new patent addressed this problem by trapping the hairspring stud in place with a bracket (Fig. 3 & 4), which has an edge (I) milled into it to mate with a corresponding notch (J) in the stud (Fig. 5 & 6), preventing it from moving either vertically or rotationally.


For further info visit the Records page.



Records Page

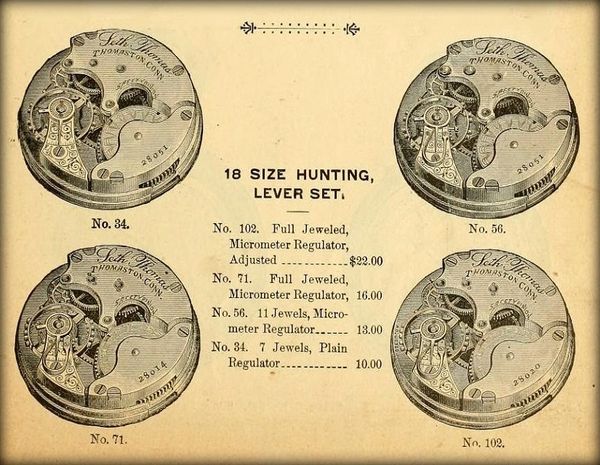

Period Ad Cuts

1889

Ad from Chicago wholesaler Lapp and Flershem.

1894

Ad cut from retailer S F Myers, with much higher pricing than the competition.

1895

1898
